Submersible Aeration Mixer Combines Aeration and Flow Push Prevents Sludge Deposition
Product Description
The aeration efficiency of aeration equipment is a key indicator, affected by factors such as bubble size and gas-liquid contact time. High-quality equipment can generate small and uniform bubbles, prolong the residence time of bubbles in water, and improve oxygen utilization rate.
Product Parameters
The flat-plate diaphragm aerator, developed in the 1980s, features small aeration bubble diameters, a small gas-liquid interface diameter, a large gas-liquid interface area, uniform bubble diffusion, no clogging, and strong corrosion resistance.
| Parameter |
Specification |
| Aerator Dimensions |
φ215mm, φ260mm, φ300mm |
| Service Area |
0.25-0.55㎡/unit, 0.35-0.75㎡/unit |
| Average Pore Size of Aeration Membrane |
80-100µm |
| Air Flow Rate |
1.5-3m³/h |
| Total Oxygen Transfer Coefficient |
kla (20°C) 0.204-0.337min-1 |
| Oxygen Utilization Rate (Water Depth 3.2m) |
18.4-27.7% |
| Oxygenation Capacity |
0.112-0.185kgO²/m³/h |
| Oxygenation Power Efficiency |
4.46-5.19kgO²/kWh |
| Aeration Resistance |
180-280mmH₂O |

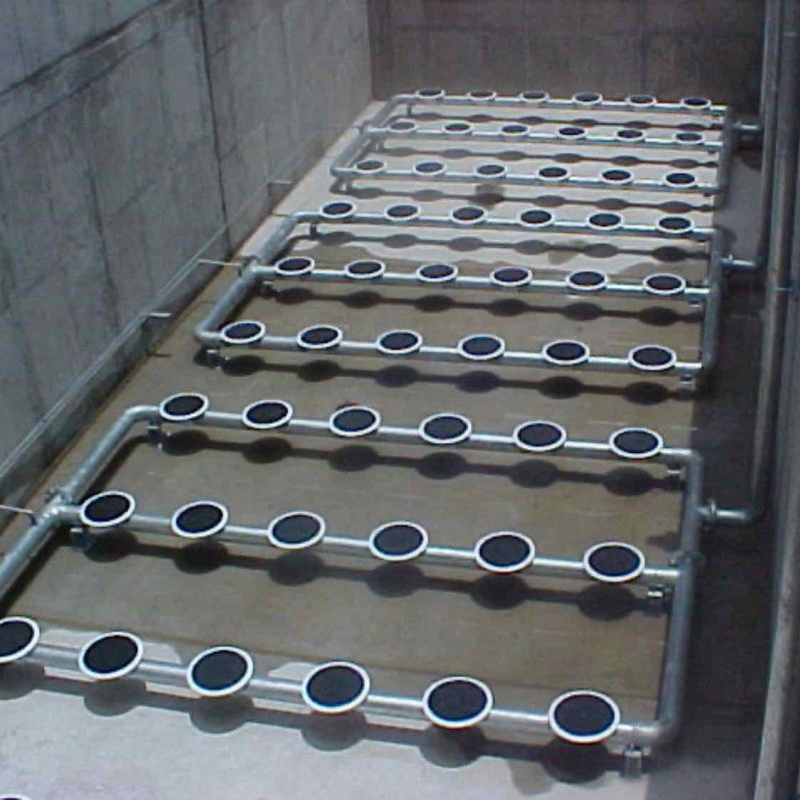

Air pipe design should consider pressure balance and form a ring network. Each inlet pipe group should be equipped with a valve to facilitate air volume adjustment. Designed flow rate for air pipes: 10-15 m/s for main pipes and 5 m/s for branch pipes. Installation height of aerator surface from pool bottom: 270mm, 250mm, 200mm for push-plate type.
Advantages
- Small bubble diameters and uniform bubble diffusion
- Large gas-liquid interface area for improved efficiency
- No clogging and strong corrosion resistance
- 40% reduction in energy consumption compared to conventional aerators
- 40% increase in wastewater treatment capacity
- Suitable for urban sewage treatment and industrial applications
- Compatible with intermittent operation of aeration tanks
Company Introduction
Jiangsu Ponis Environmental Technologies Co., Ltd. covers a total area of 10000 square meters and is divided into two factories based on production and assembly. The management office has jurisdiction over the technical department, finance department, engineering department, production department, and an experimental center. From product design to manufacturing debugging, the mode is mature and the supply is stable.
Our experimental center has complete equipment, which can perform trace and complete analysis of pollutants, and also has simulated operating conditions such as physicochemical, biochemical, and advanced treatment. The company can customize and manufacture equipment for customers, as well as provide guarantees for their later operation and debugging.
Frequently Asked Questions
Are You Trading Company Or Manufacture?
We Are Both Manufacture And Trading Company. We Have Over 15 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
What Are Your Main Products?
Automatic dosing machine, sludge dewatering machine, mechanical bar screen, screw conveyor, sludge scraper, filter press machine, sewage gates, aerator equipment, mixing machine, turntable filter machine, bag dust collector, dissolved air flotation equipment, etc.
How Can I Find The Suitable Model?
Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.
Do You Offer After-Sales Service?
Video Technical Support, Online Support, Spare Parts, Field Maintenance Repair Service.
Do You Provide OEM Service?
Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
What About Your Produce Time? What Kind Of Transportation Do You Offer?
Within 30 Days Against Down Payment. Air, Land & Sea.
What Kind Of Payment Do You Accept?
T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram.
