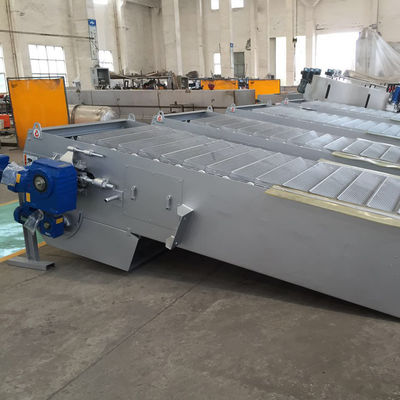

Compact and Energy Saving Step Type Mechanical Bar Screen Quiet Operation for Small Pump Stations

Chain-type mechanical grilles operate by using chains to drive grille bars or rake teeth to move circularly. As the chains rotate, the rake teeth scrape off intercepted impurities from the grille surface and convey them to the discharge port, suitable for medium and large sewage treatment plants with high impurity content.

This equipment is of drum spiral type. The round screening drum is used as the screen surface and it is installed in the canal by 35° with horizontal plane. When the sewage flows into the screening drum from the screen end, the dregs larger than the screen gap are intercepted and settled on the inner surface of screening drum. The rotation of whole screening drum is driven by motor. The screening removal brush on the top of screening drum cleans off the screening surface with flushing mechanism. The screening is flushed into the central material groove and lifted up by conveying screw rod. The screening drops off in the material box or conveyor for transportation out for further discharging port after squeezing and dewatering.

• Compact structure of whole machine, small floor area, easy installation and operation as well as maintenance
• Small gap between grizzly bars of equipment, the gap will be designed 1mm-5mm
• High trash interception efficiency, enclosed conveyance and no environment pollution
• The equipment can be designed fully automatic control, smooth operation, low energy consumption and low noise
• The equipment can be self-cleaning during operation process, never being clogged

Jiangsu Ponis Environmental Technologies Co., Ltd. covers a total area of 10000 square meters and is divided into two factories based on production and assembly. The management office has jurisdiction over the technical department, finance department, engineering department, production department, and an experimental center. From product design to manufacturing debugging, the mode is mature and the supply is stable.

Our experimental center has complete equipment, which can perform trace and complete analysis of pollutants, and also has simulated operating conditions such as physicochemical, biochemical, and advanced treatment. The company can customize and manufacture equipment for customers, as well as provide guarantees for their later operation and debugging.
