IoT Intelligent Mechanical Bar Screen with Overload Protection and Remote Monitoring
Product Overview

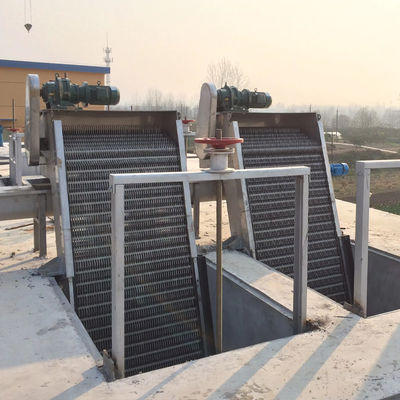

The cleaning device of mechanical grilles varies by type: chain-type ones use rake teeth, rotary ones use scrapers, and some also have high-pressure water flushing systems. These devices ensure that intercepted impurities are thoroughly removed, preventing grille blockages and maintaining water flow efficiency.
Technical Specifications
This equipment is of drum spiral type. The round screening drum is used as the screen surface and it is installed in the canal by 35° with horizontal plane. When the sewage flows into the screening drum from the screen end, the dregs larger than the screen gap are intercepted and settled on the inner surface of screening drum. The rotation of whole screening drum is driven by motor. The screening removal brush on the top of screening drum cleans off the screening surface with flushing mechanism. The screening is flushed into the central material groove and lifted up by conveying screw rod. The screening drops off in the material box or conveyor for transportation out for further discharging port after squeezing and dewatering.
Key Advantages
- Compact structure of whole machine, small floor area, easy installation and operation as well as maintenance
- Small gap between grizzly bars of equipment (1mm-5mm customizable)
- High trash interception efficiency with enclosed conveyance and no environment pollution
- Fully automatic control capability with smooth operation, low energy consumption and low noise
- Self-cleaning during operation process prevents clogging
Manufacturer Profile
Jiangsu Ponis Environmental Technologies Co., Ltd. covers a total area of 10000 square meters with dedicated production and assembly facilities. Our organization includes technical, finance, engineering, and production departments supported by a fully-equipped experimental center capable of complete pollutant analysis and simulated operating conditions. We offer customized equipment manufacturing with comprehensive operation and debugging support.
Frequently Asked Questions
Are You Trading Company Or Manufacturer?
We are both manufacturer and trading company with over 15 years' professional experience as a wastewater treatment equipment manufacturer and engineering service enterprise.
What Are Your Main Products?
Automatic dosing machine, sludge dewatering machine, mechanical bar screen, screw conveyor, sludge scraper, filter press machine, sewage gates, aerator equipment, mixing machine, turntable filter machine, bag dust collector, dissolved air flotation equipment, etc.
How Can I Find The Suitable Model?
Please provide flow rate, solids content and sludge type, we can assist you in model selection.
Do You Offer After-Sales Service?
Video technical support, online support, spare parts, field maintenance repair service.
Do You Provide OEM Service?
Yes. We can do customized design according to your different request for sludge dewatering.
What About Your Production Time and Transportation Options?
Within 30 days against down payment. Air, land & sea transportation available.
What Kind Of Payment Do You Accept?
T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram.
