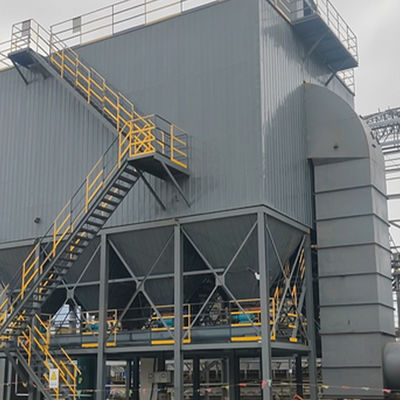

High efficiency Bag Dust Collector Industrial Dust Treatment Workshop Cleaning Airflow 500-500,000 m³/h

A bag filter is a highly efficient dry dust removal device that uses fiber filter bags to capture solid particles from dust-laden gases. Its operating principle is to pass dusty air through a filter medium, trapping particles on the bag surface while the purified gas is discharged. This device boasts high dust removal efficiency and stable operation, making it widely used in flue gas purification systems in industries such as cement, metallurgy, and chemical engineering.

• Airflow: 500-500,000 m³/h (customizable depending on model)
• Filtration velocity: 0.5-2.0 m/min (depending on dust properties)
• Filtration efficiency: ≥99.5% (for particles 0.1 μm and larger)
• Resistance (pressure drop): 800-2000 Pa (initial resistance approximately 300-500 Pa)
• Operating temperature: ≤260°C (depending on filter bag material; PTFE can withstand temperatures up to 280°C)
• Filter bag materials: Polyester (PE), Polypropylene (PP), PPS, PTFE, fiberglass, etc.
• Filter bag specifications: Diameter φ120-160 mm, Length 2-8 m (customizable)
• Casing material: Carbon steel (anti-corrosion coating), Stainless steel (corrosion-resistant)

• High Dust Removal Efficiency: Effectively captures fine dust, achieving over 99% dust removal efficiency. It also effectively captures fine particulate matter such as PM2.5, meeting stringent environmental emission standards.
• Wide Application: Capable of handling a wide range of dust types, including dry powder, fibrous, and moist dust, and suitable for a variety of industries, including metallurgy, chemicals, power generation, building materials, and machining.
• Stable Operation: Stable performance during operation, minimally affected by factors such as inlet dust concentration and particle size distribution, ensuring long-term stable operation.
• High dust recycling value: The captured dust has high purity and is easy to recycle. Especially for some valuable dust (such as metal powder, chemical raw materials, etc.), it can realize resource recycling and reuse, thereby improving economic benefits.

Our company covers a total area of 10,000 square meters and is divided into two factories based on production and assembly. The management office has jurisdiction over the technical department, finance department, engineering department, production department, and an experimental center. From product design to manufacturing debugging, the mode is mature and the supply is stable.

Our experimental center has complete equipment, which can perform trace and complete analysis of pollutants, and also has simulated operating conditions such as physicochemical, biochemical, and advanced treatment. The company can customize and manufacture equipment for customers, as well as provide guarantees for their later operation and debugging.
