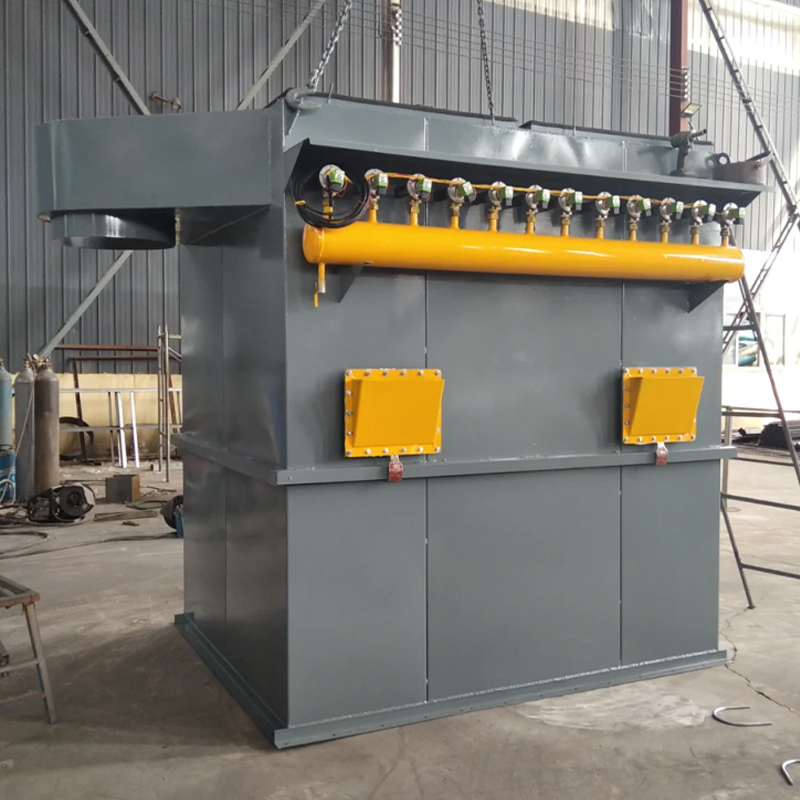

Mining Crushing & Screening Dedicated Baghouse Dust Collector High Negative Pressure
Product Description
The structure of the baghouse dust collector mainly includes a box body, a filter bag device, a dust cleaning system and an air exhaust system. The box body is a closed space to prevent dust from overflowing; each system works together to ensure the smooth process of dusty gas from entering to purification and discharge.
Product Parameters
| Parameter |
Specification |
| Airflow |
500-500,000 m³/h (customizable depending on model) |
| Filtration velocity |
0.5-2.0 m/min (depending on dust properties) |
| Filtration efficiency |
≥99.5% (for particles 0.1 μm and larger) |
| Resistance (pressure drop) |
800-2000 Pa (initial resistance approximately 300-500 Pa) |
| Operating temperature |
≤260°C (depending on filter bag material; PTFE can withstand temperatures up to 280°C) |
| Filter bag materials |
Polyester (PE), Polypropylene (PP), PPS, PTFE, fiberglass, etc. |
| Filter bag specifications |
Diameter φ120-160 mm, Length 2-8 m (customizable) |
| Casing material |
Carbon steel (anti-corrosion coating), Stainless steel (corrosion-resistant) |
Advantages
- High Dust Removal Efficiency: Effectively captures fine dust, achieving over 99% dust removal efficiency. It also effectively captures fine particulate matter such as PM2.5, meeting stringent environmental emission standards.
- Wide Application: Capable of handling a wide range of dust types, including dry powder, fibrous, and moist dust, and suitable for a variety of industries, including metallurgy, chemicals, power generation, building materials, and machining.
- Stable Operation: Stable performance during operation, minimally affected by factors such as inlet dust concentration and particle size distribution, ensuring long-term stable operation.
- High dust recycling value: The captured dust has high purity and is easy to recycle. Especially for some valuable dust (such as metal powder, chemical raw materials, etc.), it can realize resource recycling and reuse, thereby improving economic benefits.
Company Introduction
Jiangsu Ponis Environmental Technologies Co., Ltd. covers a total area of 10000 square meters and is divided into two factories based on production and assembly. The management office has jurisdiction over the technical department, finance department, engineering department, production department, and an experimental center. From product design to manufacturing debugging, the mode is mature and the supply is stable.
Our experimental center has complete equipment, which can perform trace and complete analysis of pollutants, and also has simulated operating conditions such as physicochemical, biochemical, and advanced treatment. The company can customize and manufacture equipment for customers, as well as provide guarantees for their later operation and debugging.
FAQ
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 15 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q: What Are Your Main Products?
A: Automatic dosing machine, slude dewatering machine, mechanical bar screen, screw conveyor, sludge scraper, fliter press machine, sewage gates, aerator equipment, mixing machine, turntable filter machine, bag dust collector, dissolved air flotation equipment, etc.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A: Within 30 Days Against Down Payment. Air, Land & Sea.
Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram
