Submersible Aerator Equipment for Wastewater Treatment 215-300mm
| Attribute |
Value |
| Product Name |
Aerator Equipment |
| Aerator Dimensions |
φ215mm, φ260mm, φ300mm |
| Average Pore Size of Aeration Membrane |
80-100µm |
| Air Flow Rate |
1.5-3m³/h |
| Oxygenation Capacity |
0.112-0.185kgO²/m³/h |
| Aeration Resistance |
180-280mmH₂O |
Submersible Aerator Equipment Deep Oxygen Supply High Efficiency Wastewater Treatment
Aeration equipment is a core component of wastewater treatment, injecting air into the water to promote microbial metabolism. It creates a gas-liquid contact interface, enabling both oxygen transfer and mixing, directly impacting biochemical treatment efficiency. Aeration equipment can be categorized into various types based on mass transfer principles and is widely used in municipal and industrial wastewater treatment.
Product Parameters

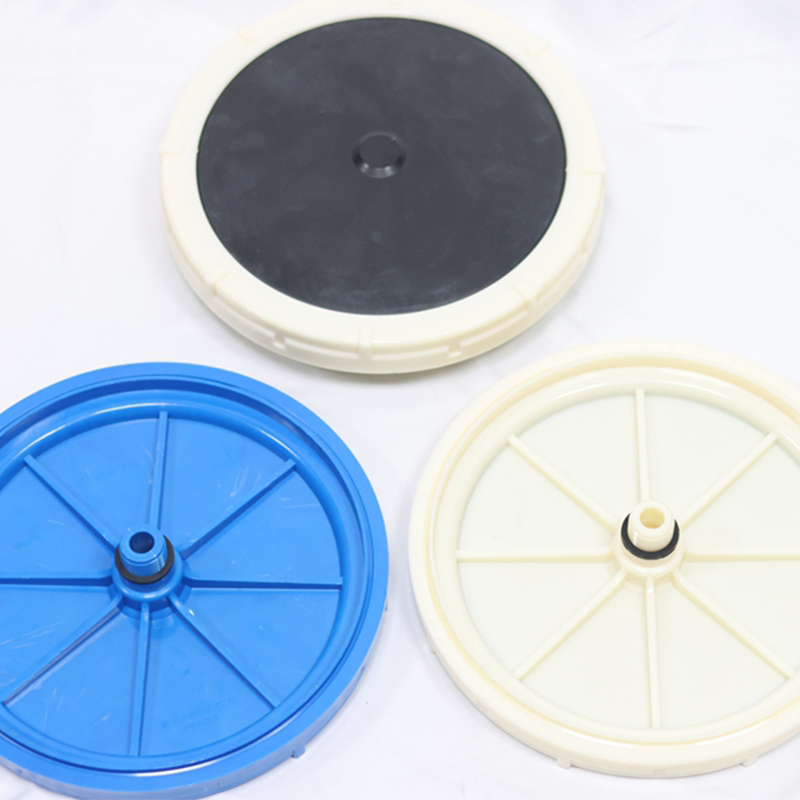

The flat-plate diaphragm aerator, developed in the 1980s, features small aeration bubble diameters, a small gas-liquid interface diameter, a large gas-liquid interface area, uniform bubble diffusion, no clogging, and strong corrosion resistance.
- Aerator Dimensions: φ215mm, φ260mm, φ300mm
- Service Area: 0.25-0.55㎡/unit, 0.35-0.75㎡/unit
- Average Pore Size of Aeration Membrane: 80-100µm
- Air Flow Rate: 1.5-3m³/h
- Total Oxygen Transfer Coefficient: kla (20°C) 0.204-0.337min-1
- Oxygen Utilization Rate: (Water Depth 3.2m) 18.4-27.7%
- Oxygenation Capacity: 0.112-0.185kgO²/m³/h
- Oxygenation Power Efficiency: 4.46-5.19kgO²/kWh
- Aeration Resistance: 180-280mmH₂O
Air pipe design should consider pressure balance and form a ring network. Each inlet pipe group should be equipped with a valve to facilitate air volume adjustment. Designed flow rate for air pipes: 10-15 m/s for main pipes and 5 m/s for branch pipes. Installation height of aerator surface from pool bottom: 270mm, 250mm, 200mm for push-plate type.
Advantages
Flat-plate diaphragm aerators feature small bubble diameters, a small gas-liquid interface diameter, and a large gas-liquid interface area, ensuring uniform bubble diffusion without clogging. They also offer strong corrosion resistance. Testing has shown that these devices reduce energy consumption by 40% and increase wastewater treatment capacity by 40% compared to conventional fixed spiral aerators, diffused flow aerators, and perforated tube aerators. They are particularly suitable for urban sewage treatment, the construction and expansion of large industrial plants, and the renovation of existing aeration tanks. Furthermore, these aeration tanks can operate intermittently.
Company Introduction
Jiangsu Ponis Environmental Technologies Co., Ltd. covers a total area of 10000 square meters and is divided into two factories based on production and assembly. The management office has jurisdiction over the technical department, finance department, engineering department, production department, and an experimental center. From product design to manufacturing debugging, the mode is mature and the supply is stable. Our experimental center has complete equipment, which can perform trace and complete analysis of pollutants, and also has simulated operating conditions such as physicochemical, biochemical, and advanced treatment. The company can customize and manufacture equipment for customers, as well as provide guarantees for their later operation and debugging.
FAQ
Are You Trading Company Or Manufacture?
We Are Both Manufacture And Trading Company. We Have Over 15 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
What Are Your Main Products?
Automatic dosing machine, slude dewatering machine, mechanical bar screen, screw conveyor, sludge scraper, fliter press machine, sewage gates, aerator equipment, mixing machine, turntable filter machine, bag dust collector, dissolved air flotation equipment, etc.
How Can I Find The Suitable Model?
Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.
Do You Offer After-Sales Service?
Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service
Do You Provide OEM Service?
Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
What About Your Produce Time?What Kind Of Transportation Do You Offer?
Within 30 Days Against Down Payment. Air, Land & Sea.
What Kind Of Payment Do You Accept?
T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram
