Fully Automatic Turntable Filter Machine for Wastewater Treatment
| Attribute |
Value |
| Product Name |
Turntable Filter Machine |
| Operating Hours |
24 hours continuous operation |
| Filter Cloth Pore Size |
10 microns |
| Backwash Water Consumption |
Low |
| Operating Costs |
Low |
| Control Method |
Fully Automatic |

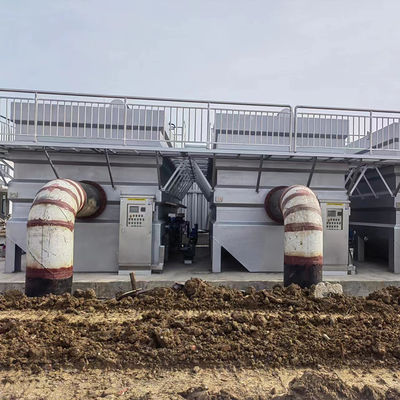

Efficient Solid Liquid Separation for Wastewater Treatment
A turntable filter machine is a highly efficient solid-liquid separation device that continuously filters liquids using rotating filter discs. Its core components are multiple vertically mounted filter discs, which simultaneously perform filtration, dewatering, and filter cloth regeneration during operation. This device offers high processing capacity with a compact footprint, making it particularly suitable for high-flow filtration needs in municipal and industrial wastewater treatment.
Product Parameters
Turntable filter machines are primarily used for cooling water treatment and advanced wastewater reuse. For cooling water and circulating water filtration and reuse, the inlet water quality must be below 80 mg/L, and the outlet water quality must be below 20 mg/L. For advanced wastewater treatment, it can be installed after conventional activated sludge processes, delayed aeration processes, SBR systems, oxidation ditches, trickling filters, and oxidation ponds.
- Processing flow: 28~35m³/h (single disk)
- Filter plate diameter: 2000mm
- Number of filter plates: 3-23
- Filtration area: 4.5m²/single disc
- Filtration rate: 8-15m/h/m²
- Influent water quality: SS≤30mg/L
- Outlet water quality: SS≤10mg/L
- Filter disc material: reinforced engineering plastic
- Filter cloth material: stainless steel, PE polyester
- Body material: stainless steel
- Backwash drive power: 1.5KW
- Backwash pump power: 5-11KW
- Washing water volume: 30L/1 tray/1 time
- Cleaning pressure: 6-8 bar
- Head loss: 50-200mm
- Backwash cycle: 1-3min (or continuous)
- Working pressure: gravity filtration (or continuous)
- Filtration form: cement tank type, box type
Key Advantages
- Continuous operation: 24-hour operation without stopping for backwash
- Excellent treatment efficiency with 10 micron filtration
- Low backwash water consumption (1%-2% of total inlet water volume)
- Low head loss (0.05-0.25 m³)
- Low operating costs (less than 0.01 yuan per ton of water)
- Low installed power requirements
- Fully automated operation with program-controlled functions
- Compact footprint with vertical design
- Short design and construction cycle with modular design
Company Introduction
Jiangsu Ponis Environmental Technologies Co., Ltd. covers a total area of 10000 square meters and is divided into two factories based on production and assembly. The management office has jurisdiction over the technical department, finance department, engineering department, production department, and an experimental center. From product design to manufacturing debugging, the mode is mature and the supply is stable.
Our experimental center has complete equipment, which can perform trace and complete analysis of pollutants, and also has simulated operating conditions such as physicochemical, biochemical, and advanced treatment. The company can customize and manufacture equipment for customers, as well as provide guarantees for their later operation and debugging.
Frequently Asked Questions
Are You Trading Company Or Manufacture?
We Are Both Manufacture And Trading Company. We Have Over 15 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
What Are Your Main Products?
Automatic dosing machine, sludge dewatering machine, mechanical bar screen, screw conveyor, sludge scraper, filter press machine, sewage gates, aerator equipment, mixing machine, turntable filter machine, bag dust collector, dissolved air flotation equipment, etc.
How Can I Find The Suitable Model?
Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.
Do You Offer After-Sales Service?
Video Technical Support, Online Support, Spare Parts, Field Maintenance Repair Service.
Do You Provide OEM Service?
Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
What About Your Produce Time? What Kind Of Transportation Do You Offer?
Within 30 Days Against Down Payment. Air, Land & Sea.
What Kind Of Payment Do You Accept?
T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram.
