Siphon Type Sludge Scraper - Low Energy Consumption, Smooth and Quiet Operation
Product Overview
Chain-type sludge scraper and suction machines use chains to drive scrapers for continuous sludge scraping. The scrapers move along the tank bottom and side walls, and the suction pipe synchronously suctions the scraped sludge. They are ideal for small to medium-sized rectangular sedimentation tanks, especially for treating sludge with high viscosity.
Technical Specifications

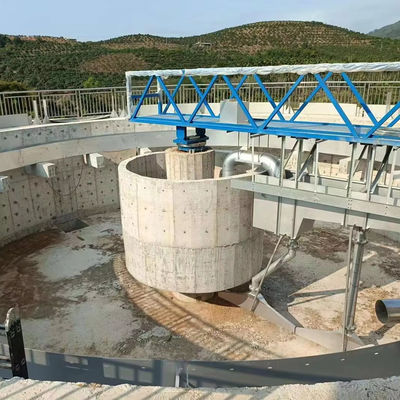

The peripheral driving is adopted for this equipment. The sewage flows in the tank from the water inlet pipe at the tank center and it flows out to the tank periphery uniformly in radial state after it is dispersed by steady flow cylinder. The sludge in suspended state is scraping at the tank bottom after settling.
The drive unit drives the working bridge to rotate along the tank periphery and drives the scraping arm and sludge scraping plate to rotate simultaneously. The sludge is suctioned into the sludge cylinder after it is scraped and collected by sludge scraping plate. Afterwards, the sludge is discharged from the pool through the central sludge discharge pipe of the pool.
Key Advantages
- The working bridge can be either half-bridge type or full-bridge type, made of carbon steel, stainless steel, or aluminum alloy
- Bevel gear reducer is directly coupled with roller for driving, featuring compact structure and high mechanical efficiency
- Scraping plate collects sludge in the trace of log spiral with good continuity and high sludge collection efficiency
- When tank bottom slope is 1:10, resistance during sludge scraping is significantly reduced
- Simple operation with local/remote control changeover switch for direct equipment control
Manufacturer Information
Jiangsu Ponis Environmental Technologies Co., Ltd. covers a total area of 10,000 square meters with dedicated production and assembly facilities. Our comprehensive management includes technical, finance, engineering, production departments, and an experimental center.
Our experimental center features complete equipment for pollutant analysis and simulated operating conditions including physicochemical, biochemical, and advanced treatment processes. We offer customized equipment manufacturing and provide operational support and debugging services.
Frequently Asked Questions
Are you a trading company or manufacturer?
We are both manufacturer and trading company with over 15 years' professional experience in wastewater treatment equipment manufacturing and engineering services.
What are your main products?
Our product range includes automatic dosing machines, sludge dewatering machines, mechanical bar screens, screw conveyors, sludge scrapers, filter press machines, sewage gates, aerator equipment, mixing machines, turntable filter machines, bag dust collectors, and dissolved air flotation equipment.
How can I find the suitable model?
Please provide flow rate, solids content and sludge type for our technical team to assist with model selection.
Do you offer after-sales service?
We provide comprehensive support including video technical assistance, online support, spare parts supply, and field maintenance repair services.
Do you provide OEM service?
Yes, we offer customized designs according to specific requirements for sludge dewatering applications.
What is your production time and transportation options?
Standard production time is within 30 days after down payment. We arrange transportation by air, land, and sea.
What payment methods do you accept?
We accept T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, and Money Gram.
