Center Drive Scraper for Radial Flow Sedimentation Tanks
Efficient Sludge Collection System
Product Description
Sludge scraper and suction machines are essential equipment in sedimentation tanks for water and wastewater treatment plants. Designed to remove accumulated sludge from tank bottoms, these systems combine scraping and suction functions to efficiently collect and transport sludge to discharge points, maintaining optimal water treatment efficiency.
Operation Parameters

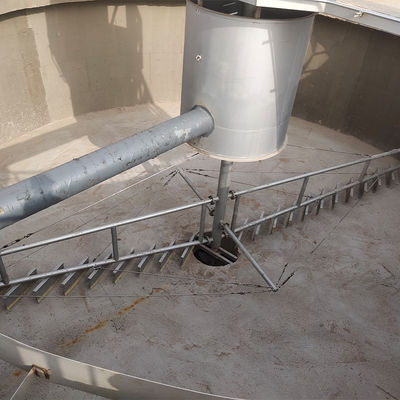

The system features peripheral driving mechanism. Wastewater enters through the central inlet pipe, disperses via steady flow cylinder, and flows radially outward. Suspended sludge settles and is scraped from the tank bottom while the drive unit rotates the working bridge along the tank periphery, simultaneously moving the scraping arm and plates.
Collected sludge is suctioned into the sludge cylinder and discharged through the central pipe. Surface scum is directed to pool edges by rotating skimmers and removed by slag buckets.
Key Advantages
- Flexible working bridge configurations: half-bridge or full-bridge types available in carbon steel, stainless steel, or aluminum alloy
- High-efficiency bevel gear reducer drive system with compact structure and excellent mechanical performance
- Logarithmic spiral scraping plate design ensures continuous operation and superior sludge collection efficiency
- Reduced scraping resistance with 1:10 tank bottom slope
- Simple operation with local/remote control switching capability
Manufacturer Profile
Jiangsu Ponis Environmental Technologies Co., Ltd. operates from a 10,000 square meter facility with dedicated production and assembly areas. Our comprehensive organization includes technical, engineering, and production departments supported by a fully-equipped experimental center.
We offer complete solutions from design to manufacturing and debugging, with capabilities for:
- Pollutant analysis and complete water treatment testing
- Custom equipment manufacturing
- Operation and debugging support
- Simulation of physicochemical, biochemical, and advanced treatment processes
Frequently Asked Questions
Are you a manufacturer or trading company?
We are both manufacturer and trading company with over 15 years' experience in wastewater treatment equipment manufacturing and engineering services.
What are your main products?
Our product range includes automatic dosing machines, sludge dewatering equipment, mechanical bar screens, screw conveyors, sludge scrapers, filter presses, sewage gates, aerators, mixers, turntable filters, bag dust collectors, and dissolved air flotation systems.
How can I select the appropriate model?
Please provide flow rate, solids content, and sludge type for our technical team to recommend the optimal configuration.
Do you offer after-sales service?
Our comprehensive support includes video technical assistance, online support, spare parts supply, and field maintenance services.
Do you provide OEM services?
Yes, we offer customized designs for sludge dewatering equipment based on specific requirements.
What is your production lead time and shipping options?
Standard production time is within 30 days after down payment. We arrange transportation by air, land, and sea.
What payment methods do you accept?
We accept T/T, L/C, Paypal, cash, D/P, D/A, Western Union, and MoneyGram.
